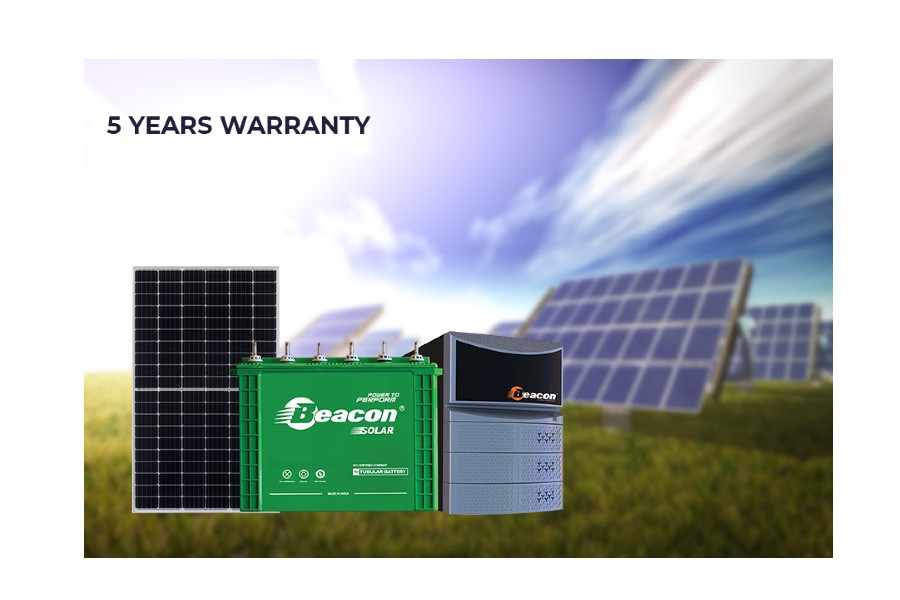

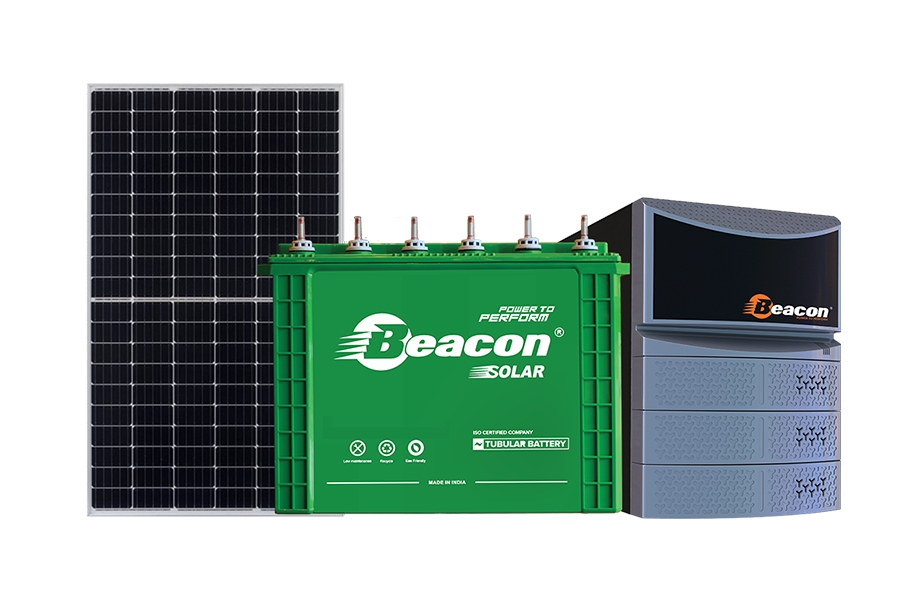

Beacon Off Grid Solar Combo packs

 Beacon Off Grid Solar Combo packs
 Beacon Off Grid Solar Combo packs

INTRODUCTION

Beacon Off Grid Solar Combo packs gives you the independence to generate your own electricity from the comfort of your house. Beacon’s MPPT range of inverter along with our solar battery and panel is the most cost-effective way to generate electricity and save money at the same time



KEY FEATURES

25-year Performance Warranty for Solar panels

3 Year Warranty for MPPT inverters which can be extended to 5 years

5-year warranty for Solar Batteries

Onsite warranty for Beacon Combo Products

No Maintenance as Inverter and battery manufactured under one roof


TECHNICAL SPECIFICATION

Model BSM 1K BSM 2K BSM 3K BSM 4K BSM 5K BSM 6K BSM 8K BSM 10K BSM 15K
Capacity 1K 2K 3K 4K 5K 6K 8K 10K 15K
DC Voltage 12/24V 24/48V 48V 48V 48/72V 72/96V 96/120V 144/192V 240V
Solar Charger PWM/MPPT MPPT
Panel Wp 600/1000 1500/2000 3000 3000 3000/4200 4200/6000 8000 10000 15000
VOC Max 21/42V 90/160V 160V 160V 160/200V 200/230V 230/280V 330/415V 570V
Mppt Efficeny >92%
Input Voltage 125-265VAC INV 170-265 VAC UPPS L-N 1PH
Output voltage 220/230/240 VC +/-1%
Load Power Factor 0.8
Over Load 110% Continious, 150% 5 sec
Sine Wave Form THD Pure sine wave <2% Linear Load <5% Non Linear Load
Crest Factor 3:1 Max
Communication RS 232/ wifi option
O/P Frequency 50/60 hz +/-0.05 Hz
Efficency Max 80/82% 85% 85% 89% 90% 90% 91% 91% 92%
Tecnology Advanced DSP Technology
Cooling Forced Air Cooling
Proctections Over Load Short Circuit Batt Low, O/P Under/ over
Operating Temp 55 degree Ambient
Humidity 95 Degree non Condesing
Change Over Fast Relay Change Over SCR C/O
